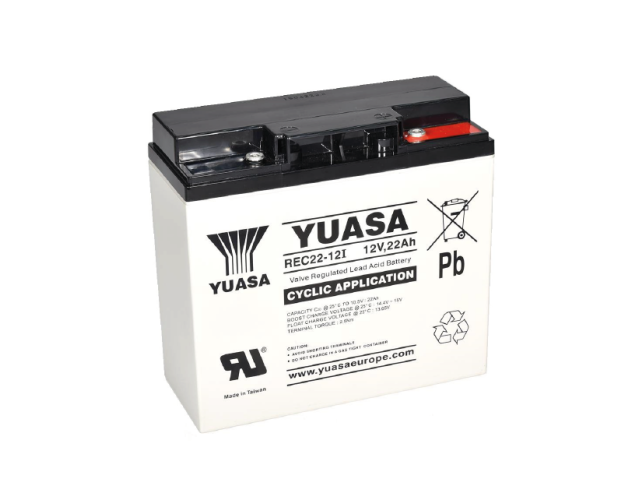

REC22-12I Yuasa 12V 22Ah - Cyklisk Blybatteri
REC22-12I Yuasa Cyklisk Blybatteri
5710927041646
Varenummer
100016538
| Længde (mm) | 181 |
|---|---|
| Bredde (mm) | 76,2 |
| Højde (mm) | 167 |
| Gross Weight (kg) | 6,2 |
| EAN | 5710927041646 |
| Inderkolli Antal | 4 |
| Ydrekolli Antal | 144 |
| Kapacitet (mAh) | 22000 |
| Spænding (V) | 12 |
| Kemi | Pb |
| Pol-type | M5 Vandret |
| Applikation | Forbrugsbatteri |
| Forventet Levetid | 3-5 år |
| Vedligeholdelsesfrit | Ja |
| Genopladelig | Yes |
| Varetype | Forbrugsbatteri |
Erstatter bl.a. følgende :
MP22-12C
LC-XC1222P
FGC21803
Kan bruges til følgende modeller :
RL1000 robomow plæneklipper
RL550 Robomower
Scoopie TXD500 Scooter
Xinling TXD500a Scooter
Hill Billy Golfvogne
Kabinescooter 6-DZM-22
REC serien er beregnet til cykliske applikationer, herunder golf og mobile enheder.
Batteriet er vedligeholdelsesfrit.
Den ventil regulerede konstruktion, kombineret med de kragtige plader og innovative separator systemer, gør REC batterierne til et pålidelighed cyklisk batteri, i den bedste klasse.
Features
- Double the cyclic life of conventional VRLA batteries.
- Electrolyte suspension AGM technology ensures no free electrolyte.
- Lead calcium grids for extended life.
- Multipurpose: float or cyclic use.
- Long shelf life.
Specifications
Nominal voltage (V)12
20-hr rate Capacity to 10.5V at 20°C (Ah) 22
10-hr rate Capacity to 10.8V at 20°C (Ah) 19.7
Terminal Type
Threaded terminal - (M=Male or F=Female) M5 (F)
Torque (Nm) 2-3Nm
Operating Temperature Range
Storage (in fully charged condition) -15°C to +50°C
Charge -0°C to +40°C
Discharge -15°C to +40°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case
Material Standard ABS (UL94:HB)
Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std 20°C (mV) -3
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.52 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std 20°C (mV) -4
Charge Current
Float charge current limit (A) 5.5
Cyclic (or Boost) charge current limit (A) 5.5
Maximum Discharge Current
1 second (A) 330
1 minute (A) 140
Cyclic Life Data
100% DOD down to 80% capacity 300
75% DOD down to 80% capacity 500
50% DOD down to 80% capacity 600
25% DOD down to 80% capacity 1400
Impedance
Measured at 1 kHz (mΩ) 8.2
Design Life & Approvals
EUROBAT Classification: General Purpose 6 to 9
Yuasa design life at 20°C (yrs) 7
